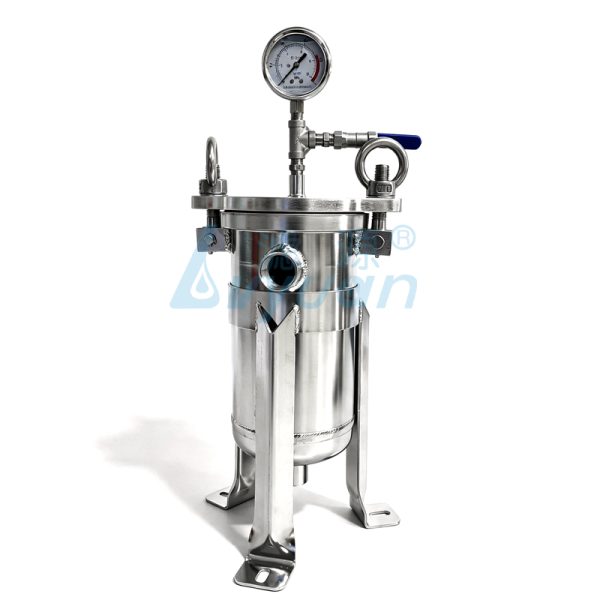

  1. Stainless Steel Single Bag Filter Housing (5)

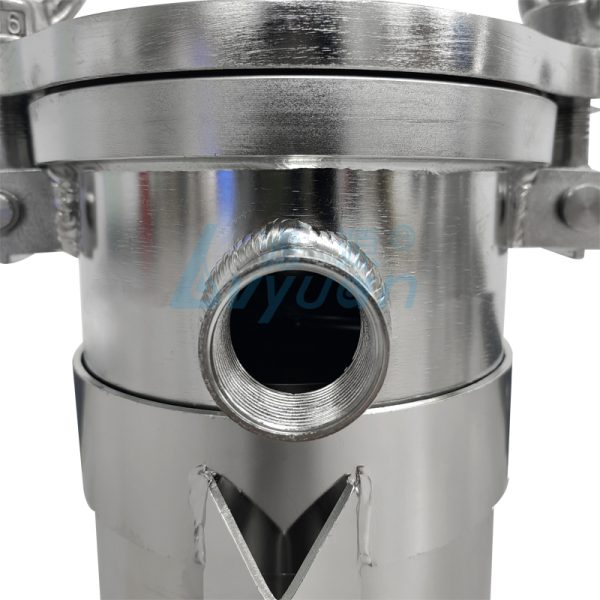

  2. Stainless Steel Single Bag Filter Housing (1)

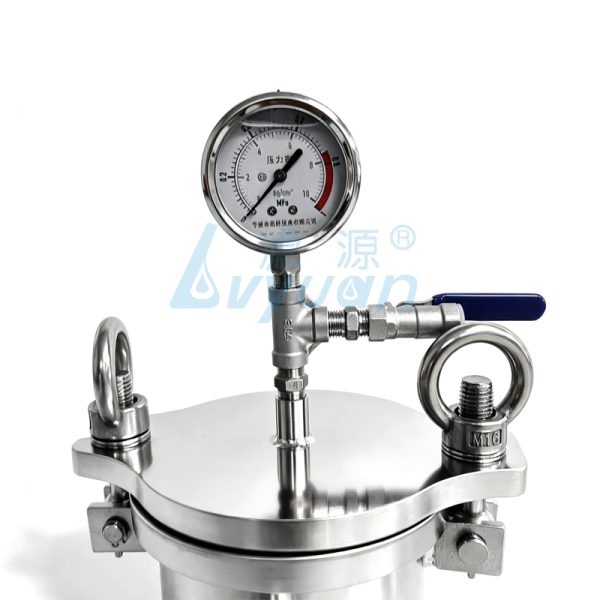

  3. Stainless Steel Single Bag Filter Housing (8)
  4. Industrial Stainless Steel Single Bag Filter Housing Unit

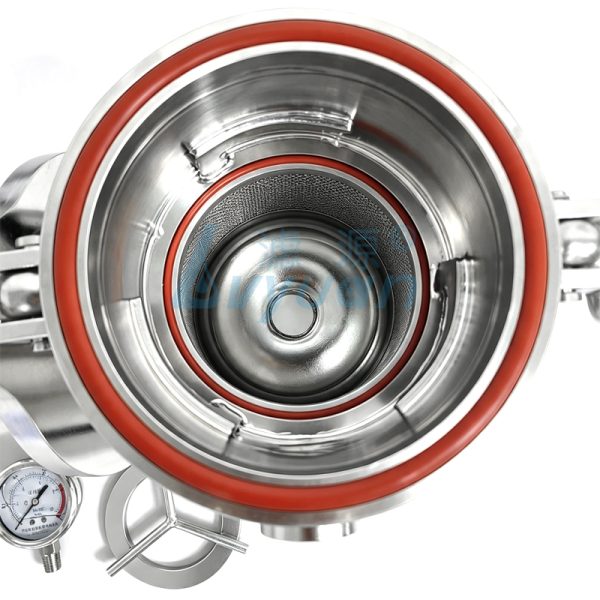

  5. Stainless Steel Single Bag Filter Housing (7)

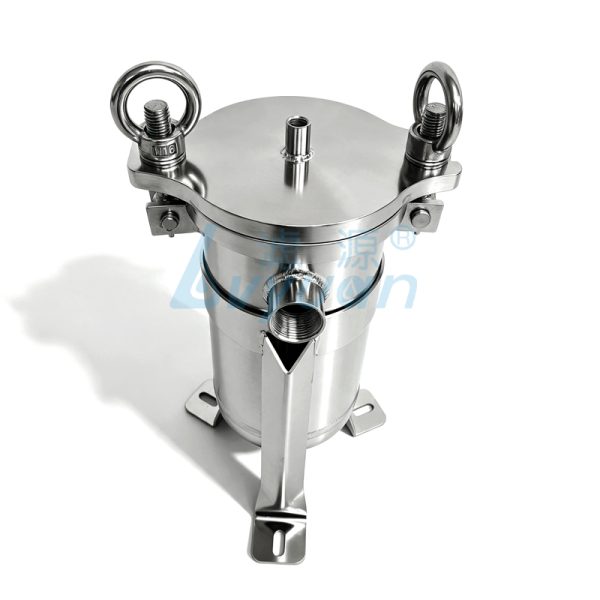

  6. Stainless Steel Single Bag Filter Housing (4)

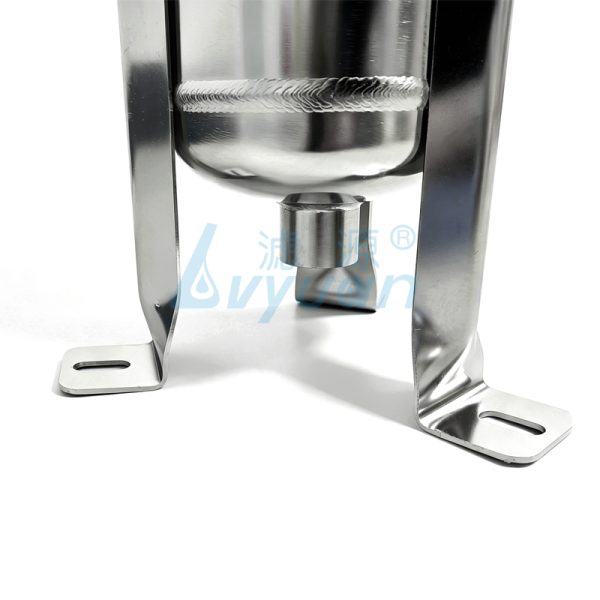

Industrial Stainless Steel Single Bag Filter Housing Unit

SS304/SS316L single bag filter housing with perforated support basket, swing eye-bolt closure and side-inlet/bottom-outlet design. Supports #1 or #2 filter bags for industrial liquid filtration and OEM/bulk supply.

Demande de renseignements
Partagez votre amour
Catégorie : Étiquettes : , ,

This stainless steel single bag filter housing is manufactured in SS304 or SS316L and uses one #1 or #2 filter bag supported by a perforated stainless steel basket. The housing features a swing eye-bolt cover, side inlet and bottom outlet, with thread, flange or tri-clamp connections available. Filter bags can be PP, PE, nylon, PTFE or stainless steel mesh with ratings from 1–200 μm.

Designed for industrial liquid filtration, the housing can operate at pressures up to 10 bar and temperatures up to 120°C when the selected gasket and filter bag materials are suitable. Available gasket materials include NBR, EPDM, silicone, FKM and PTFE, with polishing, electropolishing or sandblasting surface treatments. It provides flexible industrial filtration solutions for process filtration, water treatment and OEM equipment sourcing.

Stainless Steel Single Bag Filter Housing (3)

Stainless Steel Single Bag Filter Housing (2)

Type

Stainless Steel Single Bag Filter Housing
Matériau

SS304, SS316L
Bag Configuration

1 Bag; #1 Ø180 × 430 mm or #2 Ø180 × 810 mm
Indice de filtration

1–200 μm, depending on filter bag
Pression de fonctionnement

Max. 10 bar (150 psi)
Température de fonctionnement

Up to 120°C, depending on seal and bag material
Connexion

1.5", 2", 2.5", 3"; Thread, Flange or Tri-Clamp
La construction

Swing Eye-Bolt Closure; Perforated Stainless Steel Support Basket
