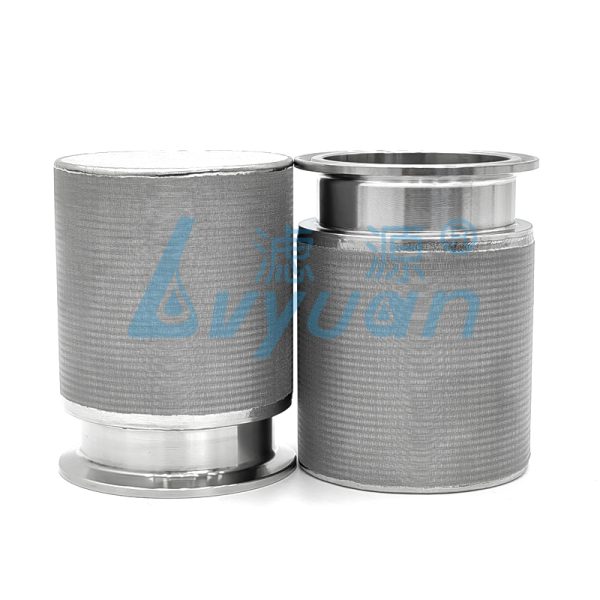

Tri-clamp sintered wire mesh filter element (6)

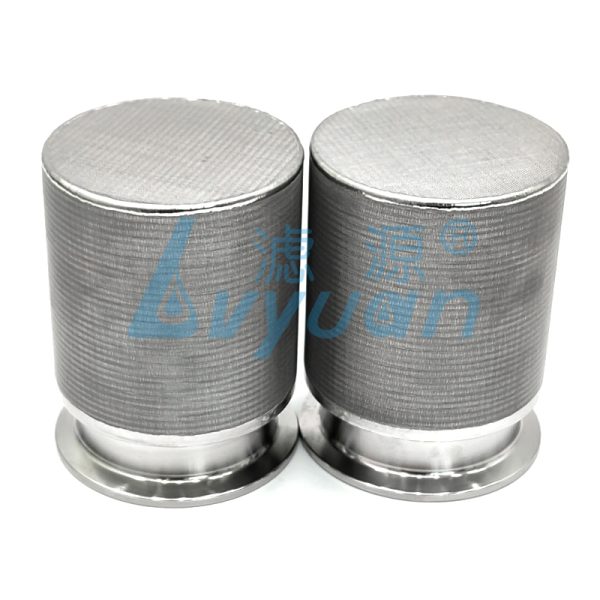

Tri-clamp sintered wire mesh filter element (5)

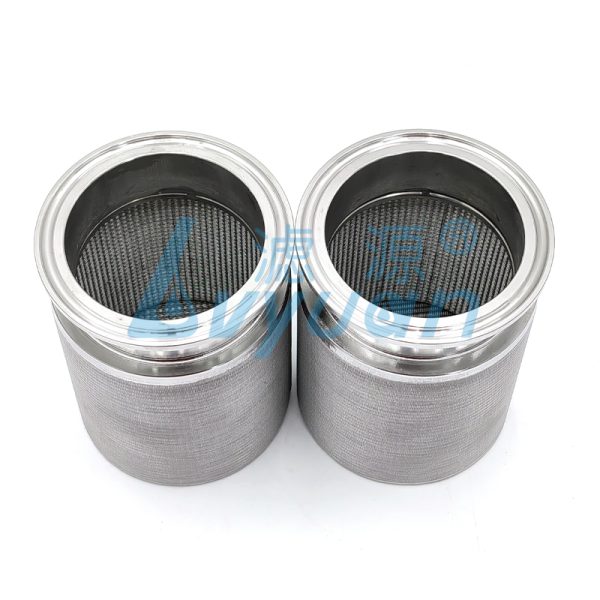

Tri-clamp sintered wire mesh filter element (7)

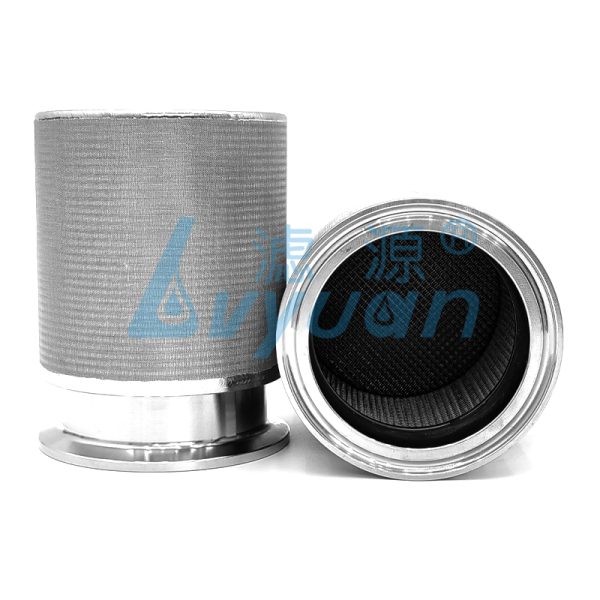

Tri-clamp sintered wire mesh filter element (3)

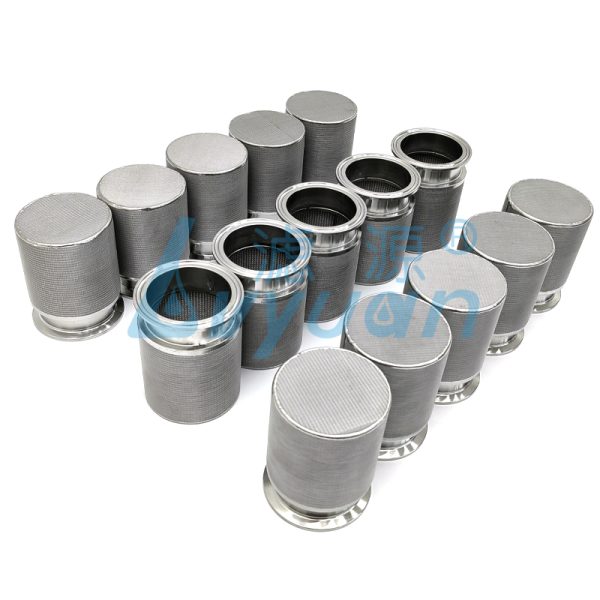

Tri-clamp sintered wire mesh filter element (1)

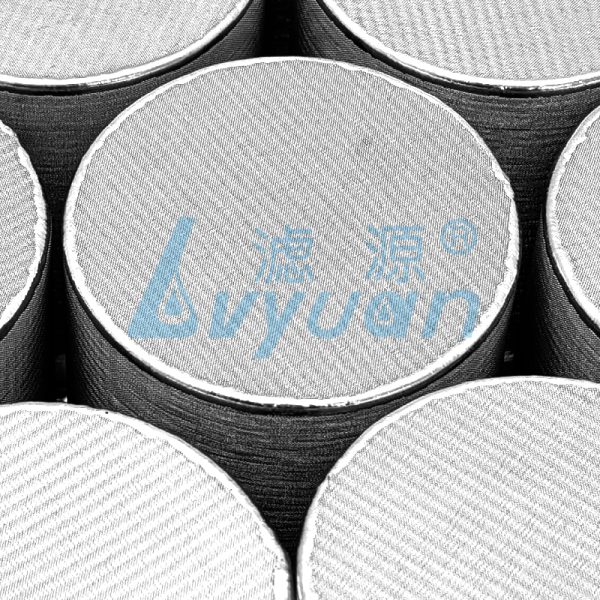

Tri-clamp sintered wire mesh filter element (4)
  1. Tri-clamp sintered wire mesh filter element (6)
  2. Tri-clamp sintered wire mesh filter element (5)
  3. Tri-clamp sintered wire mesh filter element (7)
  4. Tri-clamp sintered wire mesh filter element (3)
  5. Tri-clamp sintered wire mesh filter element (1)
  6. Tri-clamp sintered wire mesh filter element (4)

Tri-Clamp Sintered Wire Mesh Filter Element for Process Use

Multi-layer sintered wire mesh filter element with Tri-Clamp connection for chemical and process liquid filtration. Its rigid bonded mesh structure maintains stable particle retention and supports backwashing, ultrasonic and compatible chemical cleaning.

Demande de renseignements
Partagez votre amour
Catégorie : Étiquettes : , ,

This filter element is built from multiple layers of woven metal mesh that are permanently bonded by sintering into a rigid cylindrical medium. The bonded structure prevents the individual wires and mesh layers from shifting under pressure, helping maintain consistent pore geometry during service and cleaning. SS304 and SS316L are the primary materials, while Hastelloy, Inconel or Monel can be selected when process compatibility requires a specialty alloy.

The element is intended for particle removal in chemical processing, process-liquid filtration and protection of downstream equipment where a cleanable metallic filter medium is preferred. Its Tri-Clamp connection allows removable installation in compatible process assemblies, while the sintered mesh can be regenerated by backwashing, ultrasonic cleaning or suitable chemical cleaning. This construction is well suited to reusable industrial filtration solutions where stable micron retention, temperature resistance and repeated cleaning are required.

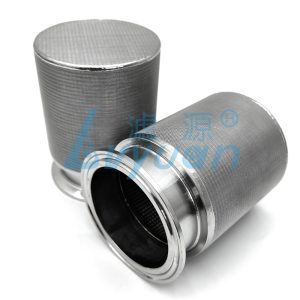

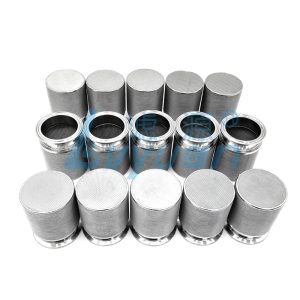

Tri-clamp sintered wire mesh filter element (8)Tri-clamp sintered wire mesh filter element (2)

Type

Sintered Wire Mesh Filter Element
Matériau

SS304/316L; Hastelloy, Inconel or Monel Optional
Média filtrant

Multi-Layer Sintered Woven Wire Mesh
Indice de filtration

2–100 μm
Longueur

100–500 mm, Customizable
Température de fonctionnement

Up to 315°C (600°F)
End Connection

Tri-Clamp Standard; 222, 226, Threaded, Flanged or Custom Options
Nettoyage

Backwashing, Ultrasonic or Compatible Chemical Cleaning
